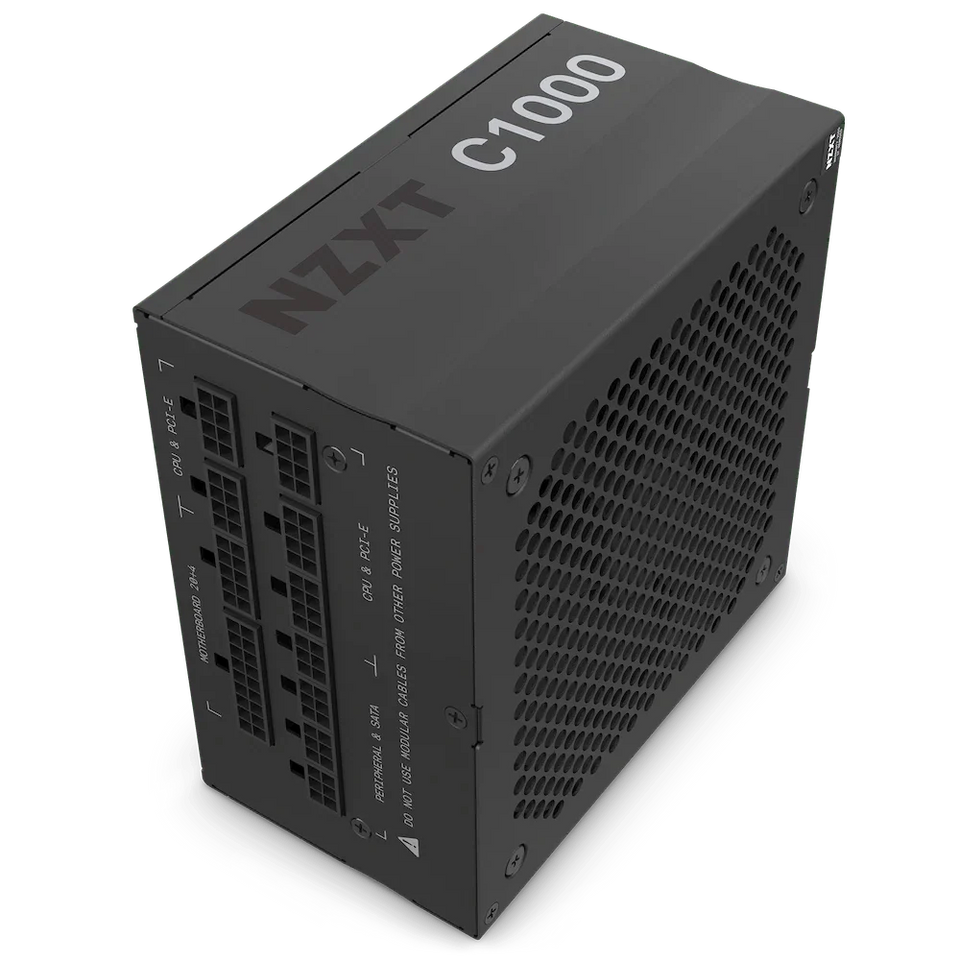

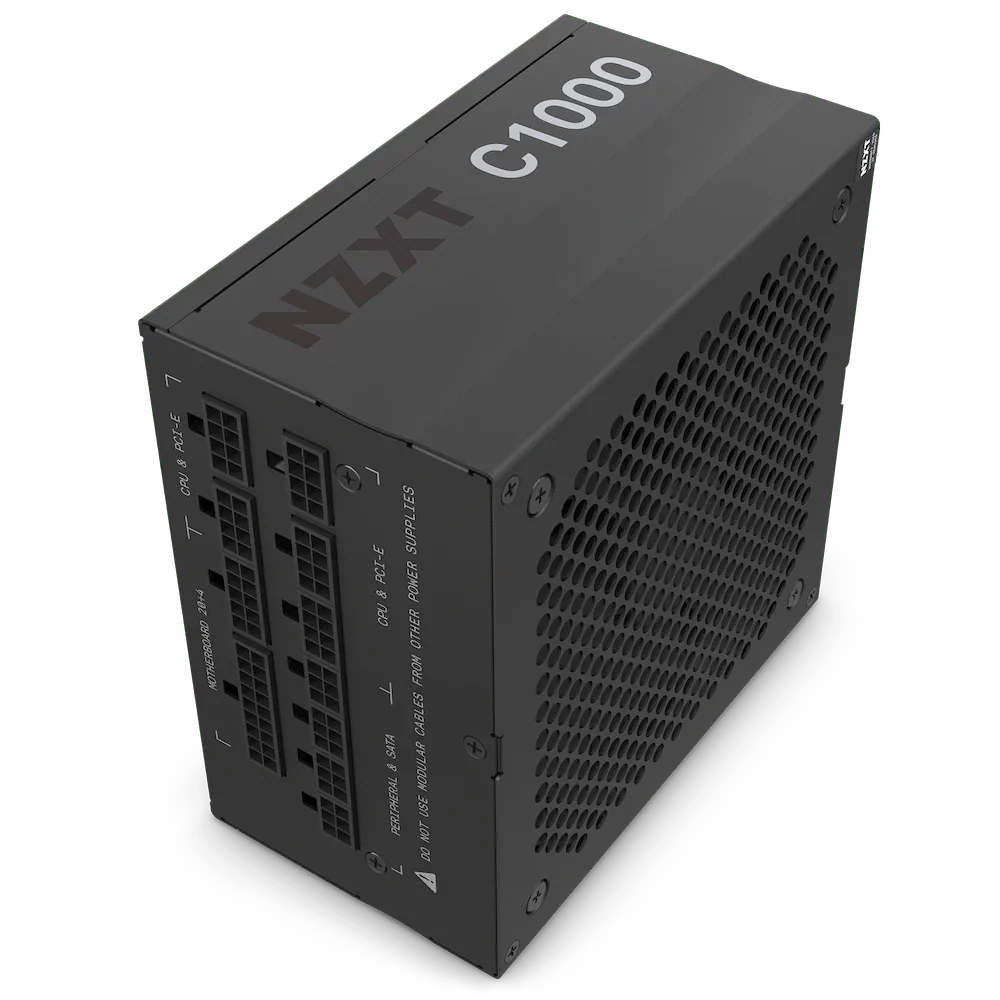

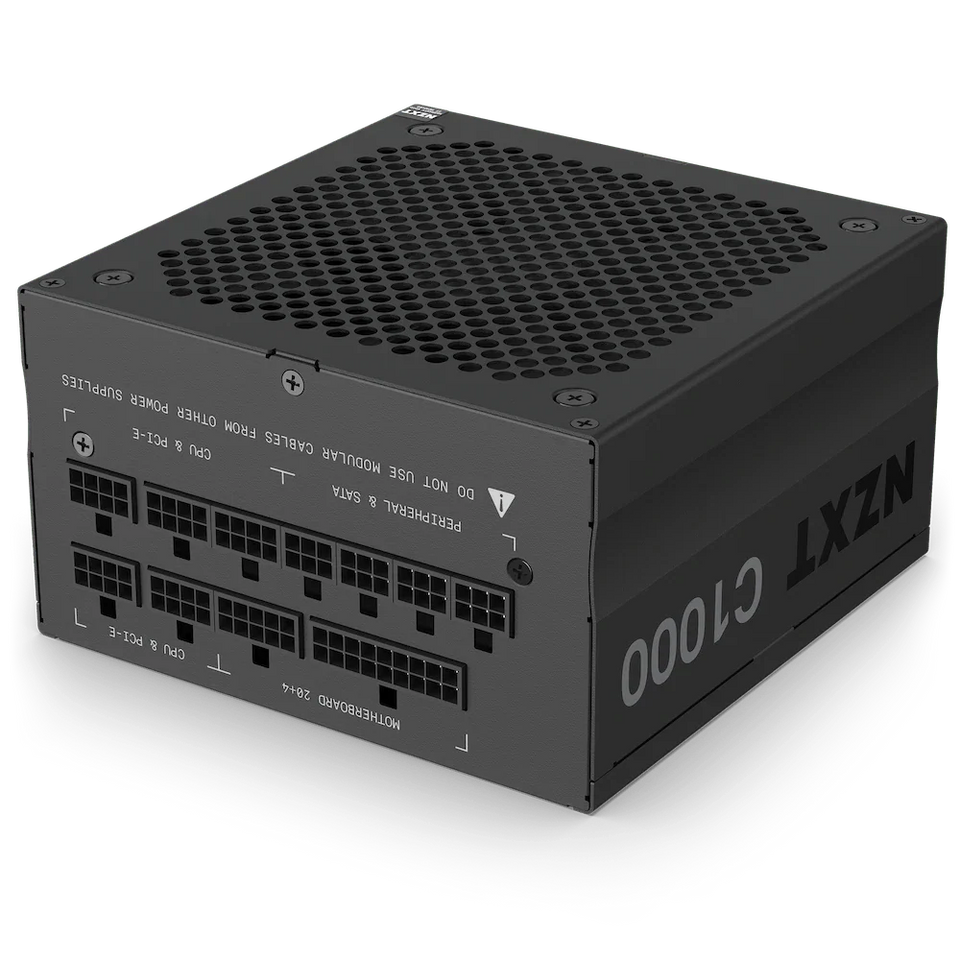

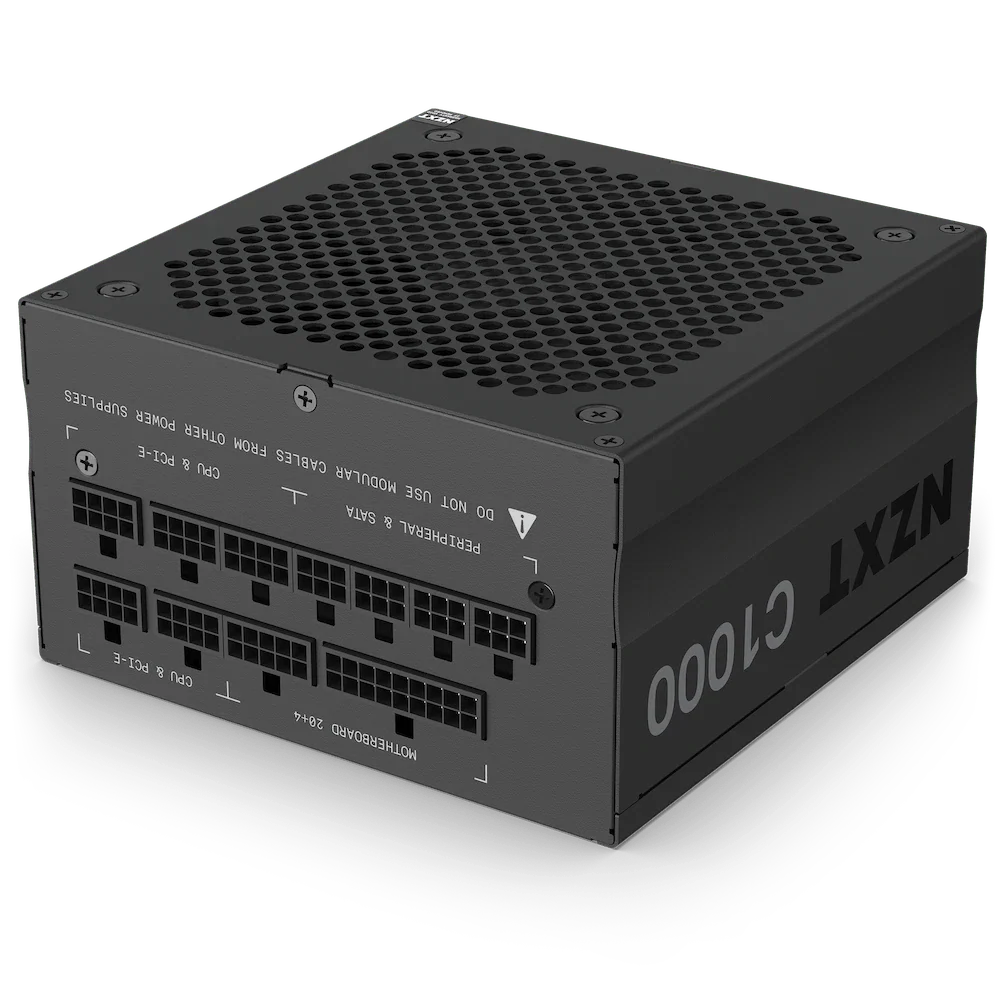

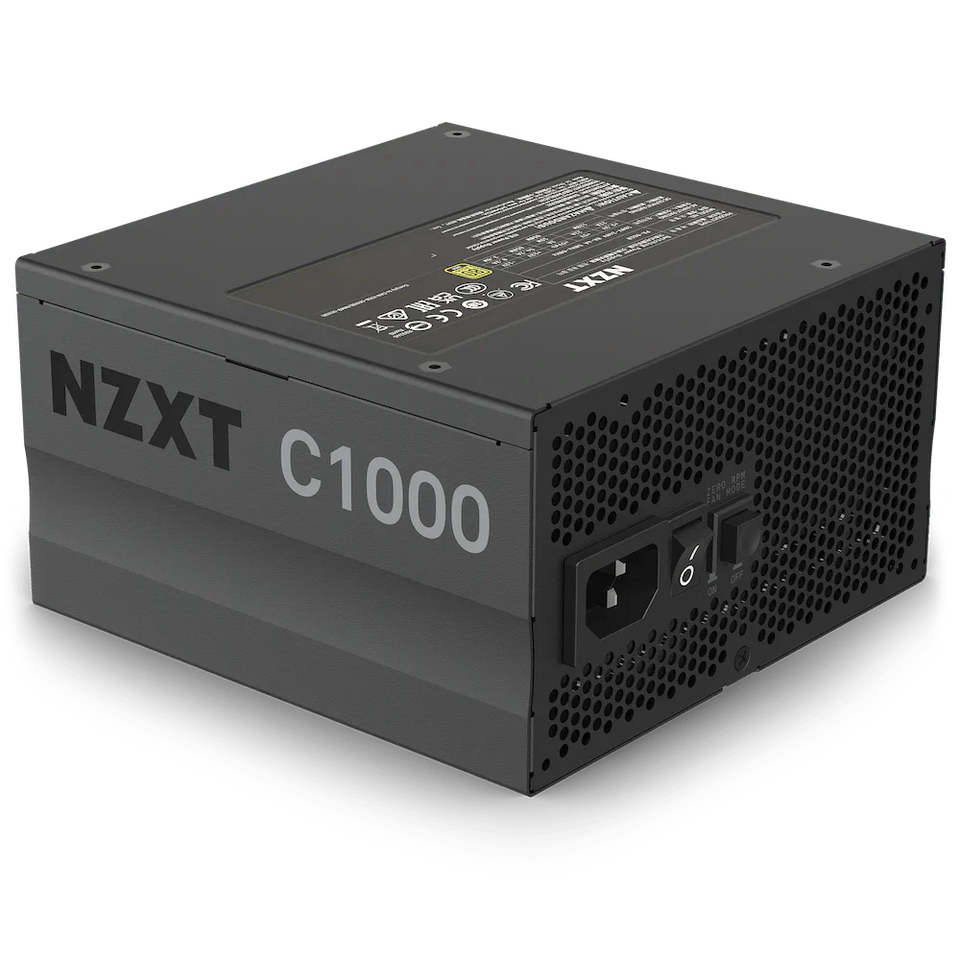

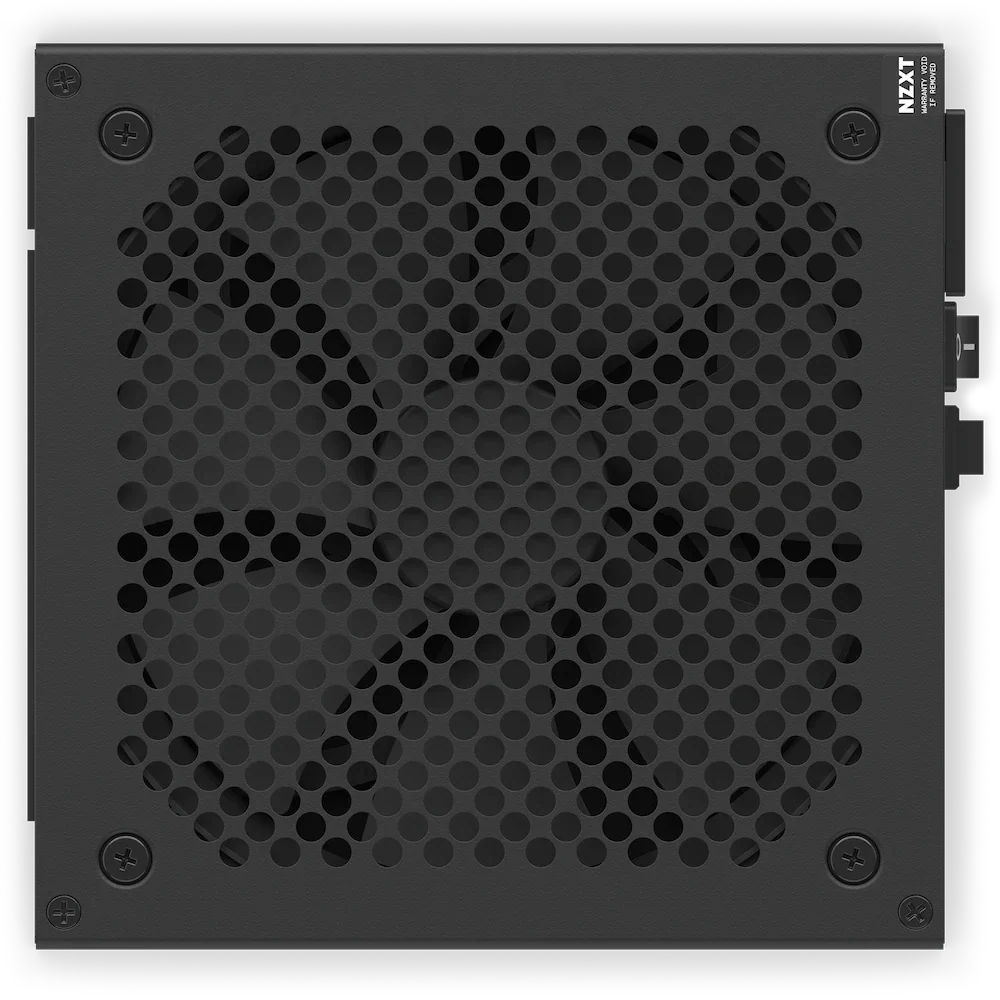

1000W NZXT C1000 V2 Gold Modular PSU

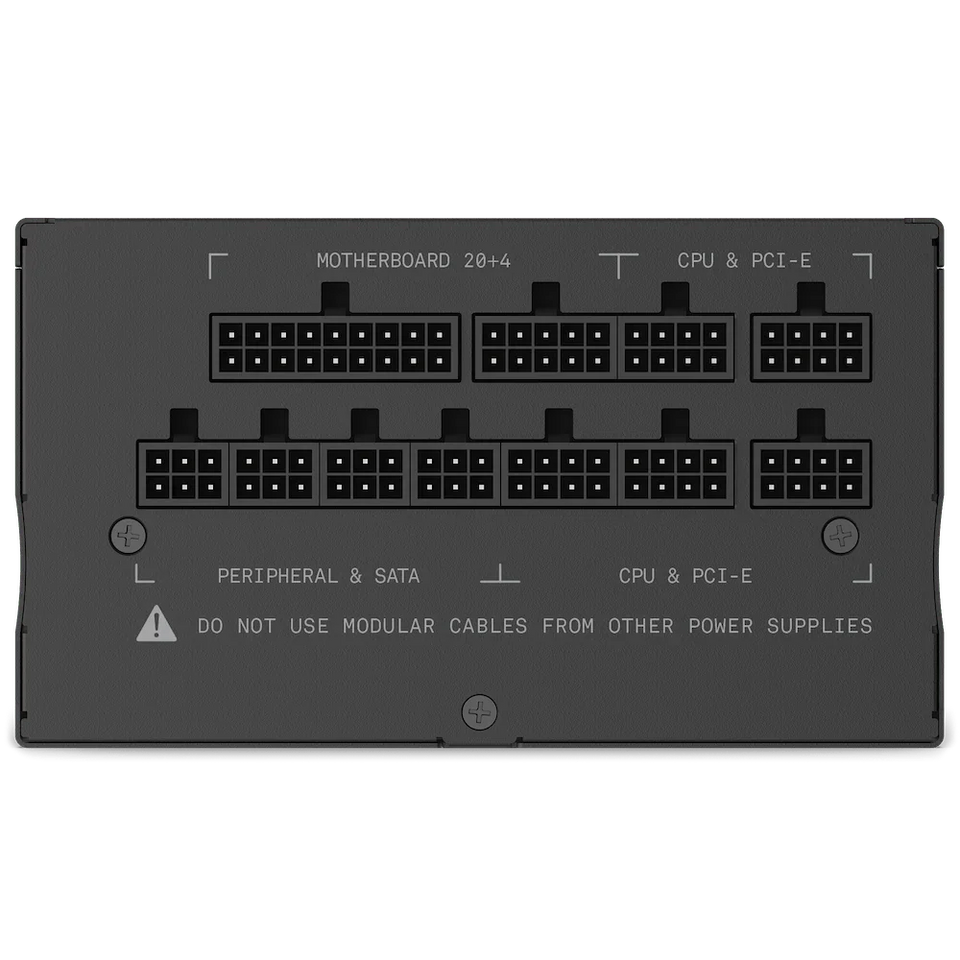

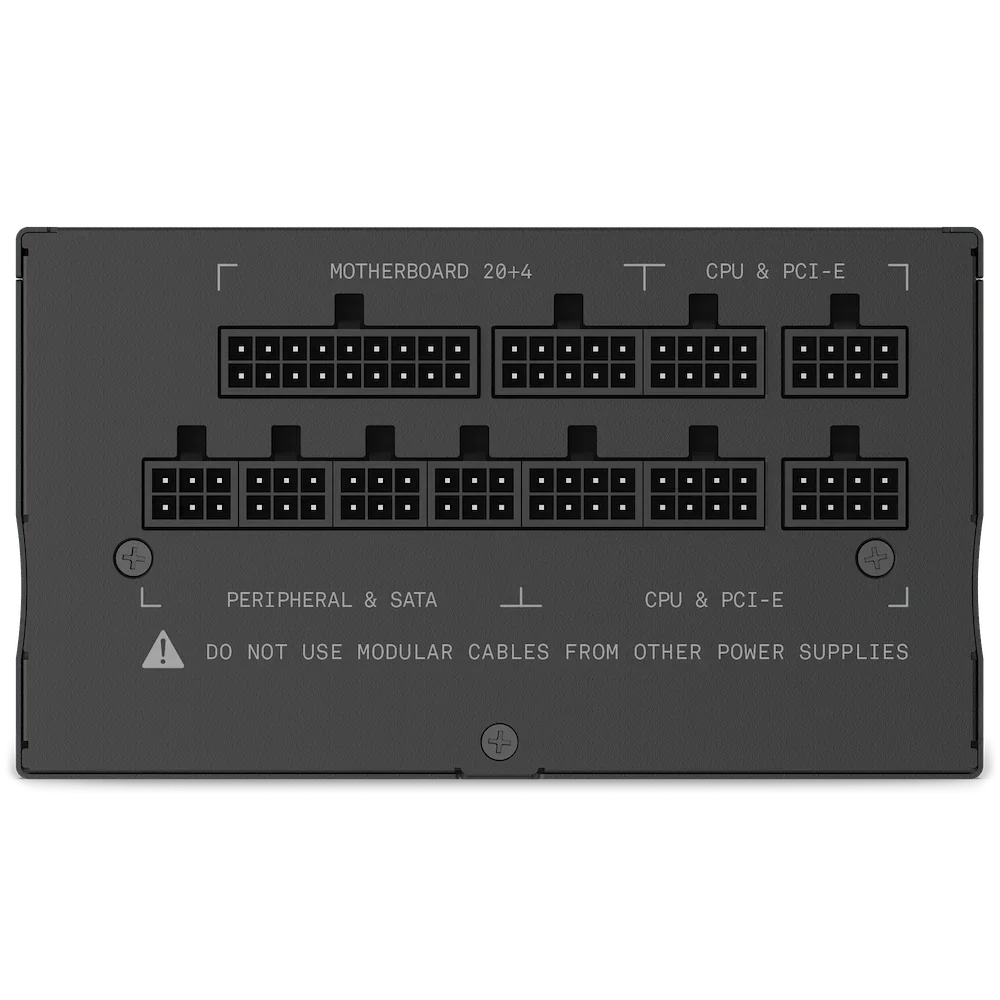

OUTPUT CONNECTORS

• 24-pin ATX power:1

• 4+4-pin CPU power:2

• 6+2-pin PCIe power:6

• SATA power:6

• Peripherals:6

CABLE SPECS

• 24-pin ATX power:600 mm. Nylon sleeving

• 4+4-pin CPU power:700 mm. Nylon sleeving

• 6+2-pin PCIe power:650 + 150 mm. Nylon sleeving

• SATA power:500 + 150 mm

• Peripherals:500 + 150 mm

AC INPUT RATING

• 100 - 240Vac:13A-6.5A 50Hz-60Hz

DC OUTPUT RATING

• +3.3V and +5V:22A (120W)

• +12V:83.5A (1002W)

• -12V:0.3A (3.6W)

• 5Vsb:3A (15W)

• Total:1000W

OPERATION

• PF Correction:Active @0.96

• MTBF:100.000 hours

• Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

ENERGY EFFICIENCY

• Rating:80 Plus Gold

• 20% loading:87% @115Vac

• 50% loading:90.5% @115Vac

• 100% loading:87.5% @115Vac

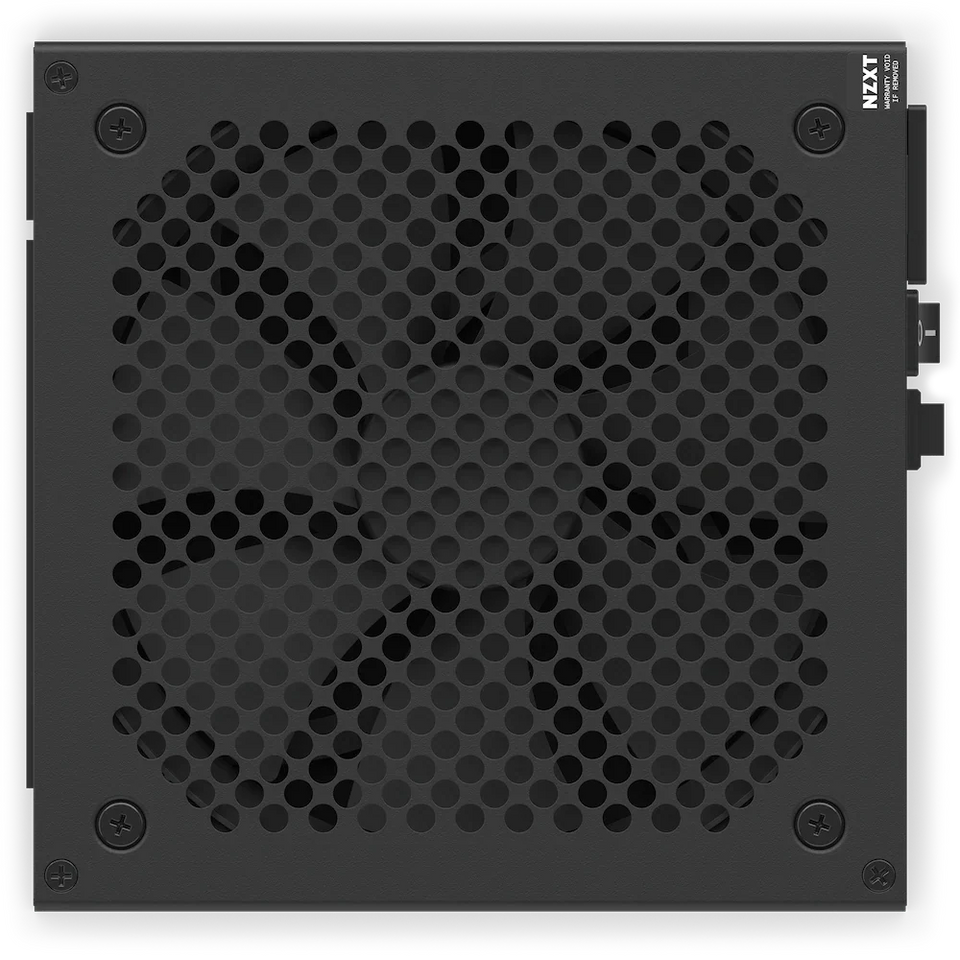

FAN SPECS

• Dimensions:135 x 135 x 25 mm

• Speed:0-2300 ± 10% RPM

• Airflow:93.02 CFM (Tpy.)

• Noise:44.5 dBA max

• Bearing:Fluid Dynamic Bearing (FDB)

GENERAL

• Dimensions:150 x 150 x 86mm

• Material(s):Steel. PCB and Plastic

• Compliance Standard:ATX12V v2.52 / EPS12V v2.92

• Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

• Warranty:10 years

• Model Number:PA-0G1BB
